Introduction
The H-MATIX NANO is a composite module composed of two separate modules. The two modules are interchangeable with other applications. When integrated, the module forms the H-MATIX NANO.
๏ปฟ

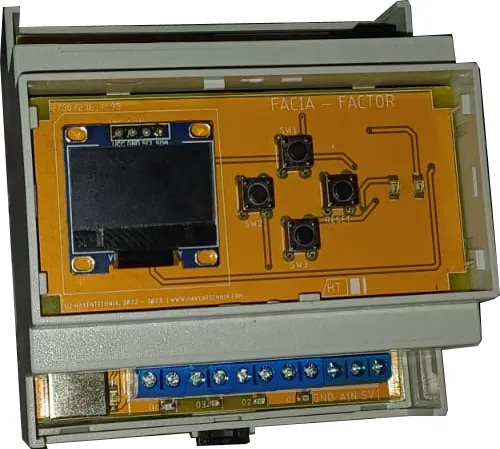

H-MATIX NANO
FACIA Module
The FACIA module is shown in the image above, included in the H-MATIX module. For more details on this module, see the following information on the FACIA๏ปฟ module.
The NANO's Offering
The H-MATIX Nano offers a compilation of features enabling the user to develop a useful and practical application.
The unit's features include the following:
- Inputs / Outputs
- 4 Inputs
- 6 Outputs (Transistor driven)
- Analog input
- Input compatible with an analog input
- Compatible with a Dallas 1 Wire sensor
- Frequency capture input
- Communications
- USB input - Type B "Printer" cable
- Programming
- Bootloader Capable
- ICSP header
