RADIX - NANO 28

7min

Lead In

The RADIX NANO 28 caters specifically to the 28 PIN devices. These devices are available in various packages and are ideally suited to single-purpose applications or monitoring a specific element.

While a small pin package type device, the architecture of these devices is sophisticated, enabling them to be used in a wide variety of modern applications for example IoT.

Side by Side

Radix Nano 28A
Radix Nano 28B
SMT Variant
SMT Variant
๏ปฟ

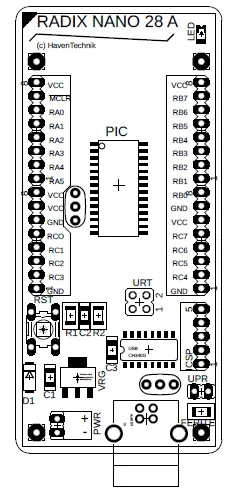

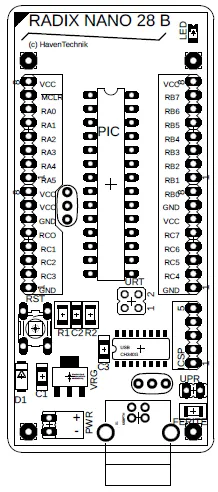

Shown above are the two line art diagrams showing the two versions of the PCB. They are identical offering the same features, except that the "B" variant is for the DIP packages. Using the B variant enables you to swap out the device.

When purchasing the Radix Nano B, select the correct device or the Nano 28 B will be supplied with no device.

๏ปฟ

Power Supply

The Radix PCBs can be powered by either the USB port or through the DC Power header.

When using the Nano with the USB port, the PCB is powered directly from the device powering the PCB. The nominal USB voltage is ~5v0.

When using the DC Header, the input voltage should not exceed 7v0, and the LD1117 a low drop-out regulator will regulate the voltage at ~5v0. The regulator is rated for 850mA which is sufficient for most applications.

External modules for example a GSM modem may require an instantaneous current of approximately 2 Amperes. If such a module is used, ensure that an additional external DC power supply is available.

๏ปฟ

Device Programming

The device is programmed using the integrated ICSP header. The device is flashed with a hex file generated by a compiler using a PICKIT programmer.

Bootloading the device is possible, see the following section: Programming the Device๏ปฟ๏ปฟ

๏ปฟ

USB UART

The USB UART enables the Nano to be connected directly to a desktop PC and the USB comms are converted to be compatible with the RS232 or UART Peripheral.

Headers

All headers are tracked from the edge of the PCB to the device, and the PINS are individually labeled for easy identification.

Lead Out

The Radix Nano 28 A or B offers a versatile and practical PIC development board. To enhance the development capabilities for your project include additional modules, sensors, or other external peripherals.

Updated 02 Apr 2024
