Nano Anatomy

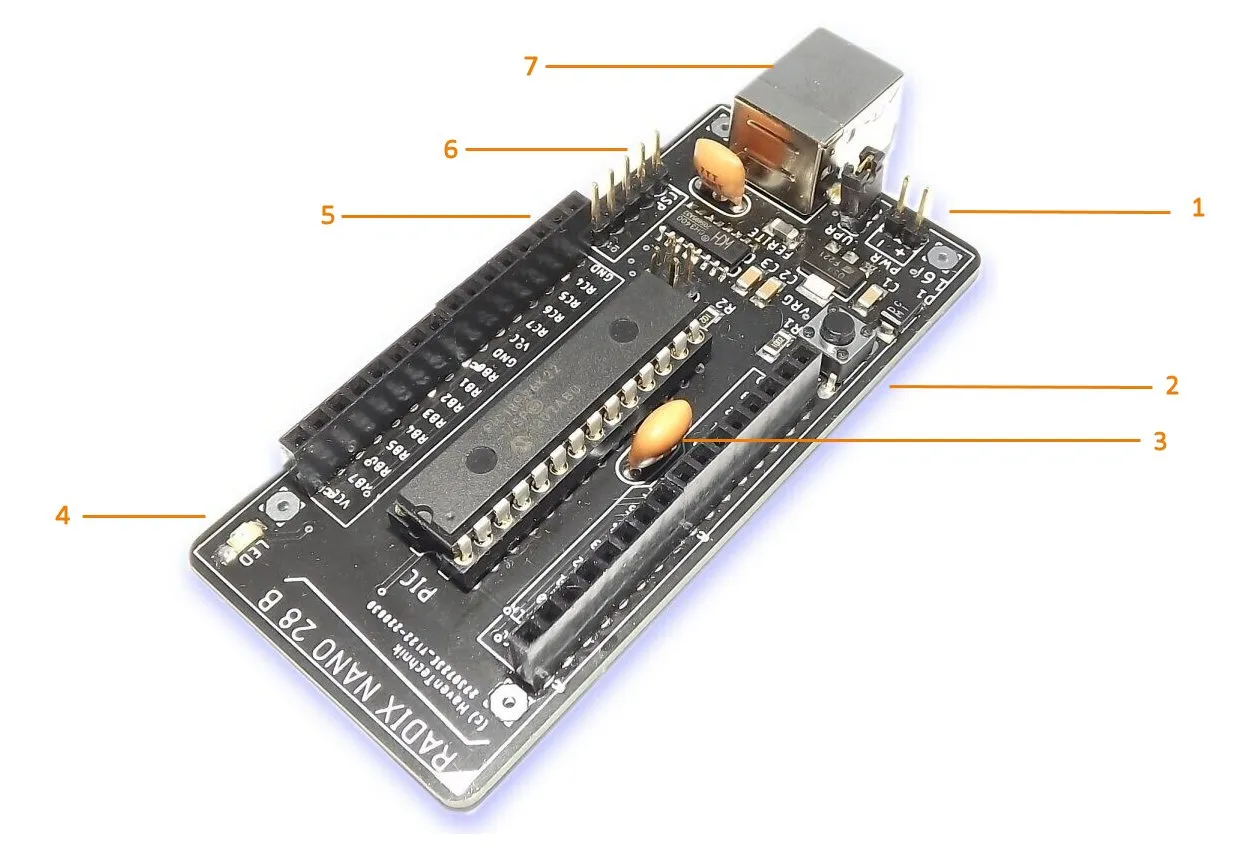

The RADIX shown below is the 28B [ 28 PIN Device, in the DIP Package], and illustrates the standard layout for the NANO series of development boards.
The NANOs all share the same layout. The board however changes size to accommodate the change in the pins for each PIC as they increase in PIN count.
﻿
Radix NANO Anatomy
﻿
Board Layout
﻿
﻿Item﻿
﻿Name﻿
﻿Description﻿
1
Power
Power Input or USB Power selection jumper
2
Reset
Reset button, used to reset the PIC
3
Resonator
Ceramic resonator, supplied as an 8MHZ resonator
4
LED
The onboard LED indicates when the PCB powers up
5
I/O Headers
Direct connection to the PIC's I/O headers
6
ICSP Header
Programming Interface for ICSP programming PIC KIT Programmer﻿ Hardware
7
USB Type B
Type B USB connector (Printer USB Cable), connects the PCB for USB power or data communications. These activities are possible simultaneously.
﻿

Item	Name	Description
1	Power	Power Input or USB Power selection jumper
2	Reset	Reset button, used to reset the PIC
3	Resonator	Ceramic resonator, supplied as an 8MHZ resonator
4	LED	The onboard LED indicates when the PCB powers up
5	I/O Headers	Direct connection to the PIC's I/O headers
6	ICSP Header	Programming Interface for ICSP programming PIC KIT Programmer Hardware
7	USB Type B	Type B USB connector (Printer USB Cable), connects the PCB for USB power or data communications. These activities are possible simultaneously.
