SIGNUM - Specifications
If you are proficient in the use of a 40 PIN device, you will find the upgrade to a 64-PIN device the natural step forward. The PICs chosen to populate the development boards have been chosen for a balance between cost and features.
If there is a specific device that is needed, please contact us to discuss your requirements.
PCB Features
The SIGNUM includes the following features supported by the PCB
- Power Options and Features
- Power LED
- All IO Tracked to headers
- Reverse Polarity Protection
- Reset Button
- Configurable PSU (3v3 | 5V0)
- Programming Interfaces
- ICSP 5 PIN Interface
- 10 PIN Mikroprog
- 8 MHZ Resonator
- Power Options
- USB Powered, with an inductor
- Configurable PSU for VDC
- Communications
- USB UART - CH340G Other Features
Device Features
Selecting your device
Selecting a device for your application is an important decision and a difficult one. Some general-purpose devices and devices cater to specific requirements. Since selecting a device is dependent on many factors, we recommend that you consider our Product Devices๏ปฟ section.

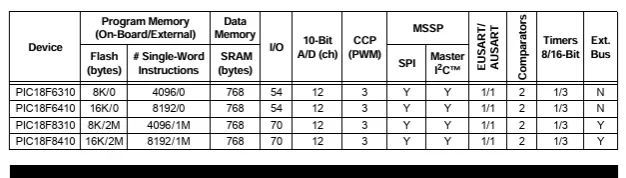

PIC18F6410 (Default Offering)
This family offers the advantages of all PIC18 microcontrollers โ namely, high computational performance at an economical price. In addition to these features, the PIC18F6310/6410/8310/8410 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance, power-sensitive applications.
Please contact us to request the device that you require on the PCB. We do carry stock of alternatives.
