RADIX - DUO

3min

The DUO range caters to the 44 PIN TQFP devices in the PIC16Fxxx and PIC18Fxxx families. The PCB is designed to accommodate learning and development requirements for a wide range of applications.

Features

The DUO includes the following features:

  • Prepopulated 44 TQFP PIN Device
  • 2 Types of Programming interfaces
    • ICSP 5 PIN Interface
    • 10 PIN Mikroprog
  • 8 MHZ Resonator
  • Power Options
    • USB Powered, with an inductor
    • Configurable PSU for Vdc
  • Communications
    • USB UART - CH340G
  • Other Features
    • Power LED
    • Reset Button
    • Reverse Polarity Protection
    • All IO Tracked to headers

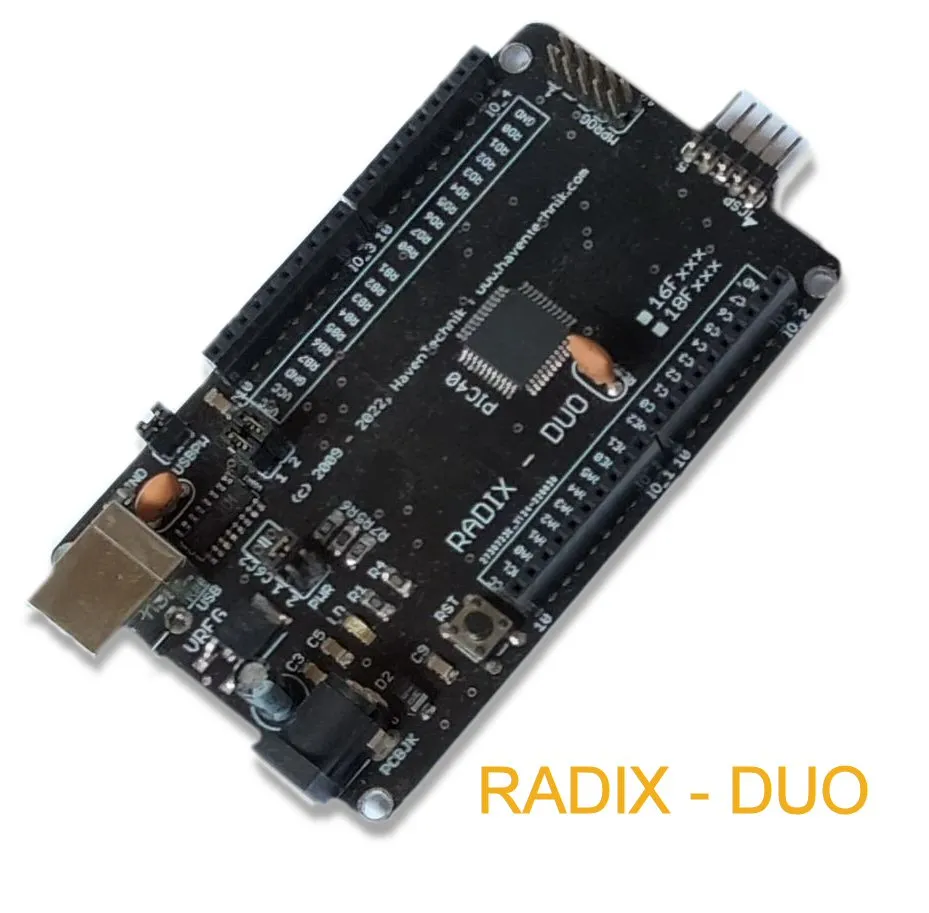

DUO
DUO
๏ปฟ

Application Development

The DUO is supplied with a device prepopulated, and this is selected at checkout.

Ensure to consult the section on product warranty, as altering the product may void the warranty.

Selecting your device

Selecting a device for your application is an important decision and a difficult one. Some general-purpose devices and devices cater to specific requirements. Since selecting a device is dependent on many factors, we recommend that you consider our Recommended Devices๏ปฟ section.
