Radix DUO Anatomy

1min

DUO Anatomy

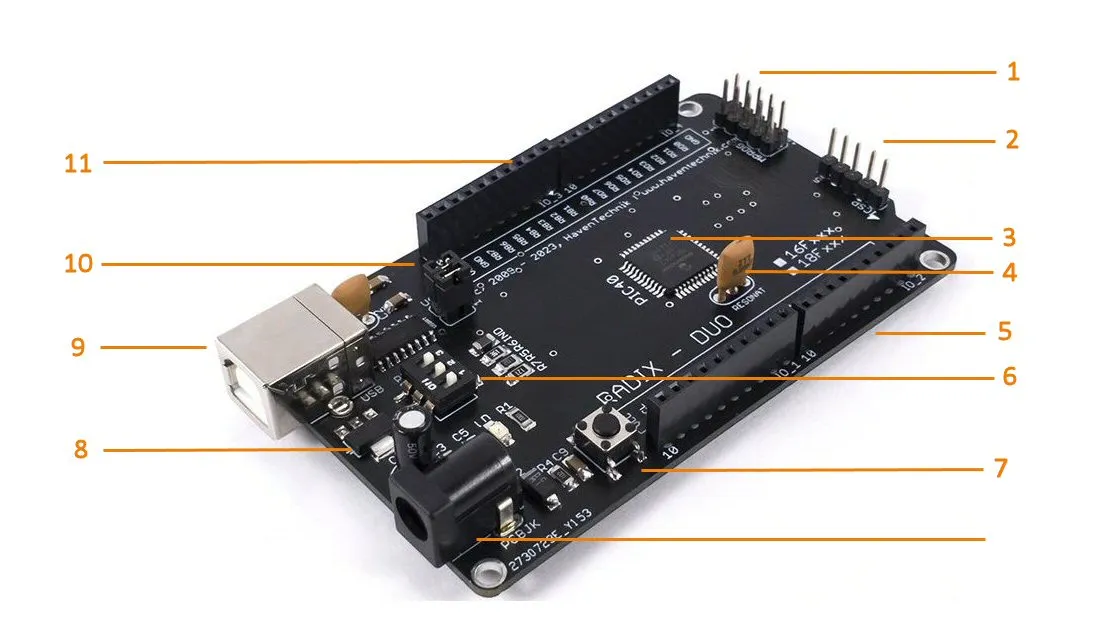

The RADIX shown below is the 40 A [ 44 PIN Device, in the TQFP Package], and illustrates the standard layout for the DUO series of development boards.
DUO ANATOMY
﻿
﻿Item﻿
﻿Name﻿
﻿Description﻿
1
MPROG Header
Interface for the MPROG Programmer from Mikroe
2
ICSP Header
ICSP Header for the PICKIT Programmer
3
MCU
PIC Microchip, 8 BIT
4
Resonator
Ceramic Resonator, supplied in 8MHZ
5
PCB
Creditcard-sized PCB
6
Power Selection
The DIP switches configure the power settings for the PCB
7
Reset
Reset button that restarts the MCU
8
VoltageRegulator
LD1117, variable voltage regulator
9
 USB Connector
Type B USB connector, commonly referred to as a Pinter cable. The USB connector is tied to a CH340G USB to Serial Bridge
10
UART Breakout
Remove the jumpers to isolate the USART
11
I/O Headers
Direct connection to the PIC's I/O headers
﻿

Item	Name	Description
1	MPROG Header	Interface for the MPROG Programmer from Mikroe
2	ICSP Header	ICSP Header for the PICKIT Programmer
3	MCU	PIC Microchip, 8 BIT
4	Resonator	Ceramic Resonator, supplied in 8MHZ
5	PCB	Creditcard-sized PCB
6	Power Selection	The DIP switches configure the power settings for the PCB
7	Reset	Reset button that restarts the MCU
8	VoltageRegulator	LD1117, variable voltage regulator
9	USB Connector	Type B USB connector, commonly referred to as a Pinter cable. The USB connector is tied to a CH340G USB to Serial Bridge
10	UART Breakout	Remove the jumpers to isolate the USART
11	I/O Headers	Direct connection to the PIC's I/O headers
