H-MATIX | Widg-X
3 min

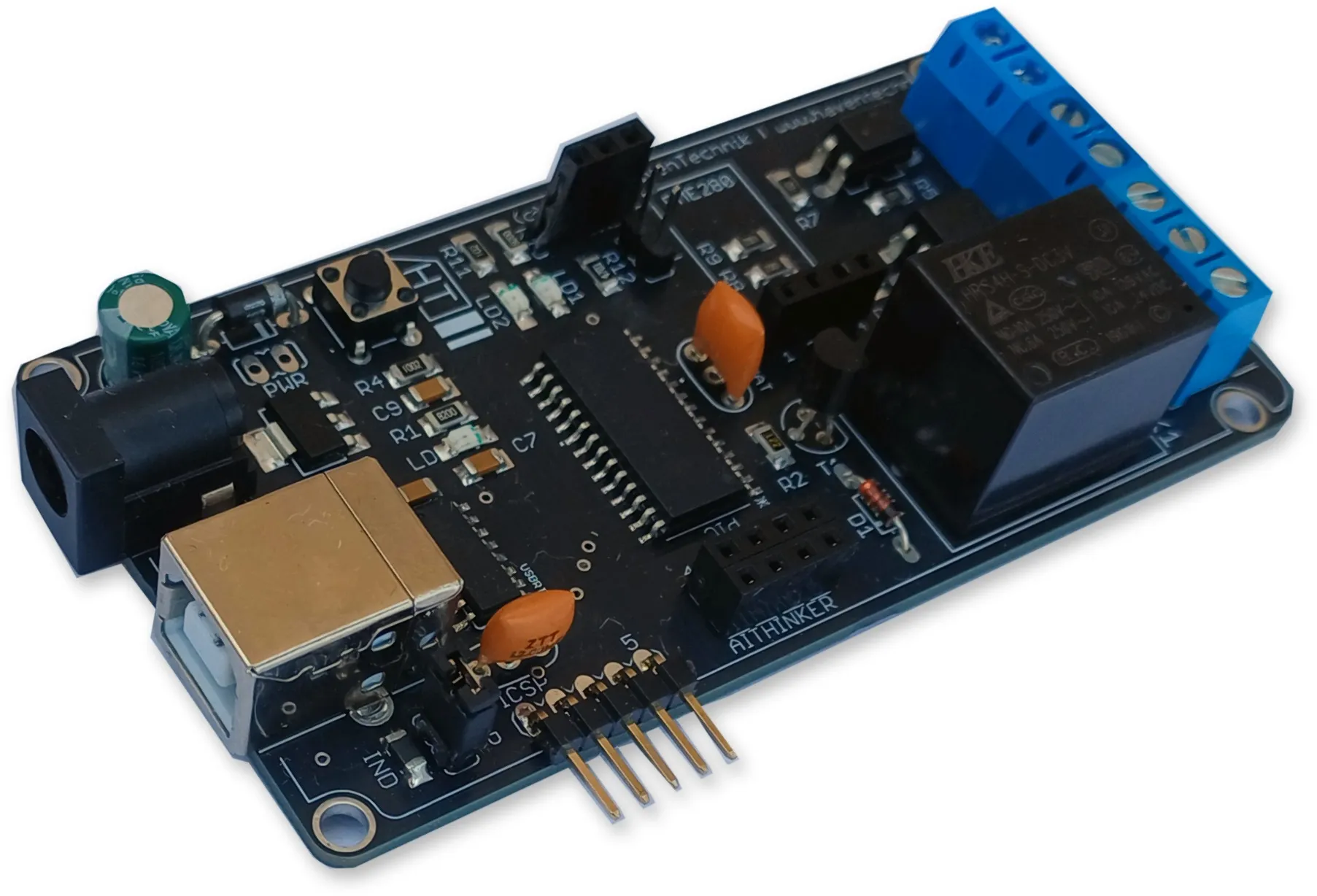

introduction widg x widg x is the entry point device to be used with our iot platform to be released soon what to expect the widg x widg x was based on our radix salvo ( https //docs haventechnik com/radix salvo https //docs haventechnik com/radix salvo ) pic development pcb the salvo has been a reliable and compact development option, especially for developers who wanted a pic based development platform that was compatible with arduino shields the widg x is a development of the radix salvo and traverses the development capabilities from a development pcb into an application with real world uses features for more indepth content on how to use widg x , please see the following link how to use widg x docid\ hpcjwgct3uy4cc lxn40z the following features are available with the h matix | widg x mcu pic18f25k22 8 mhz resonator (4xpll available) 3v3 operation only sensors analog lm35 digital dallas 1 wire | dht 11 composite digital i2c sensors, firmware dependent communications ai thinker wifi | ble usb uart programming icsp header for firmware bootloader for software updates why use it? the widg x is intended for use as a node in an iot system the communication options allow for direct couple to a pc, device to node peer pairing or network integration these options allow for simple learning with a highly capable iot node alternatively, at the same time the module is capable of being used as one of many in a network of devices the widg x offers a range of possibilities in a highly connected world, with reporting to your mobile for analysis and system monitoring
