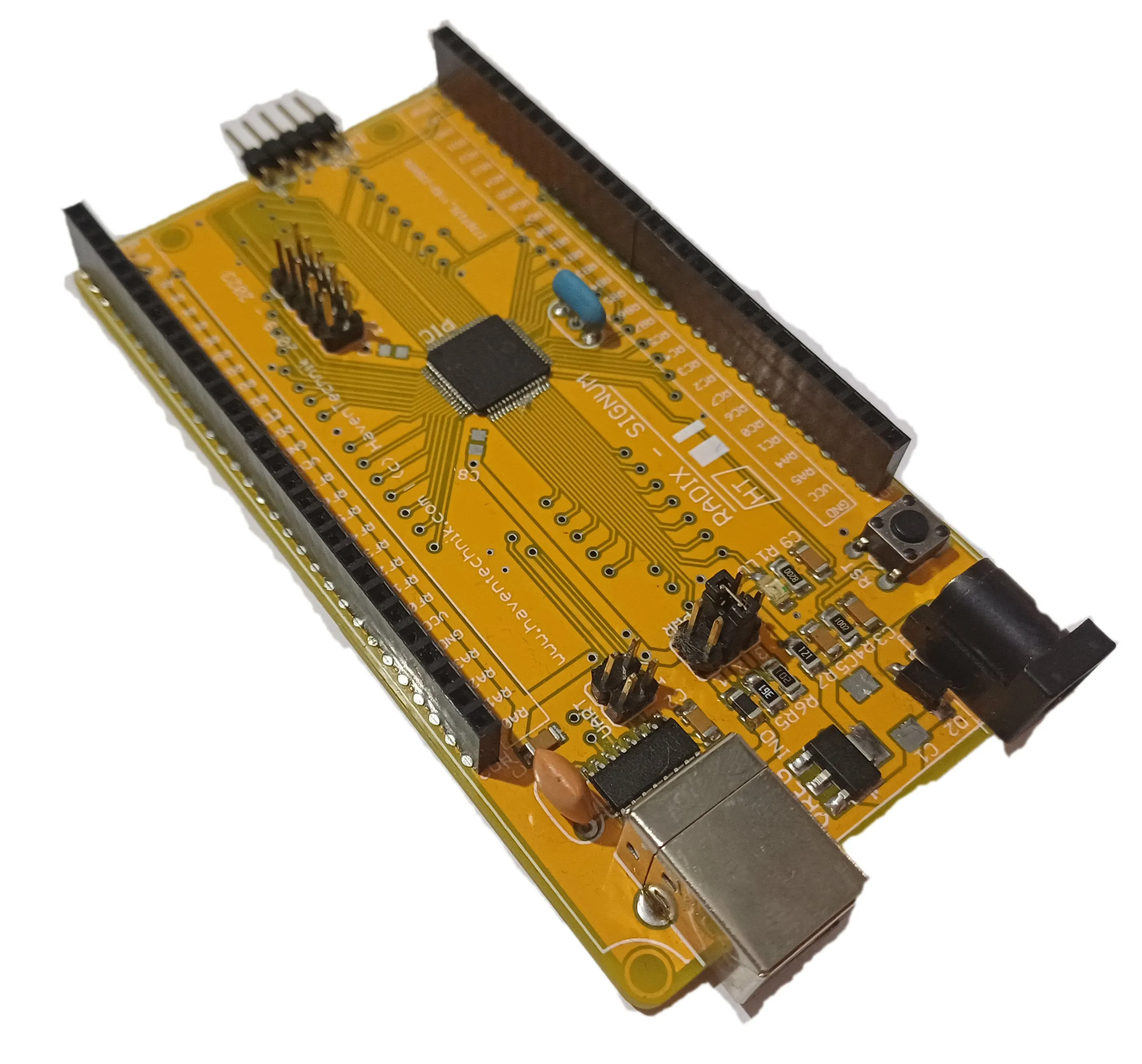

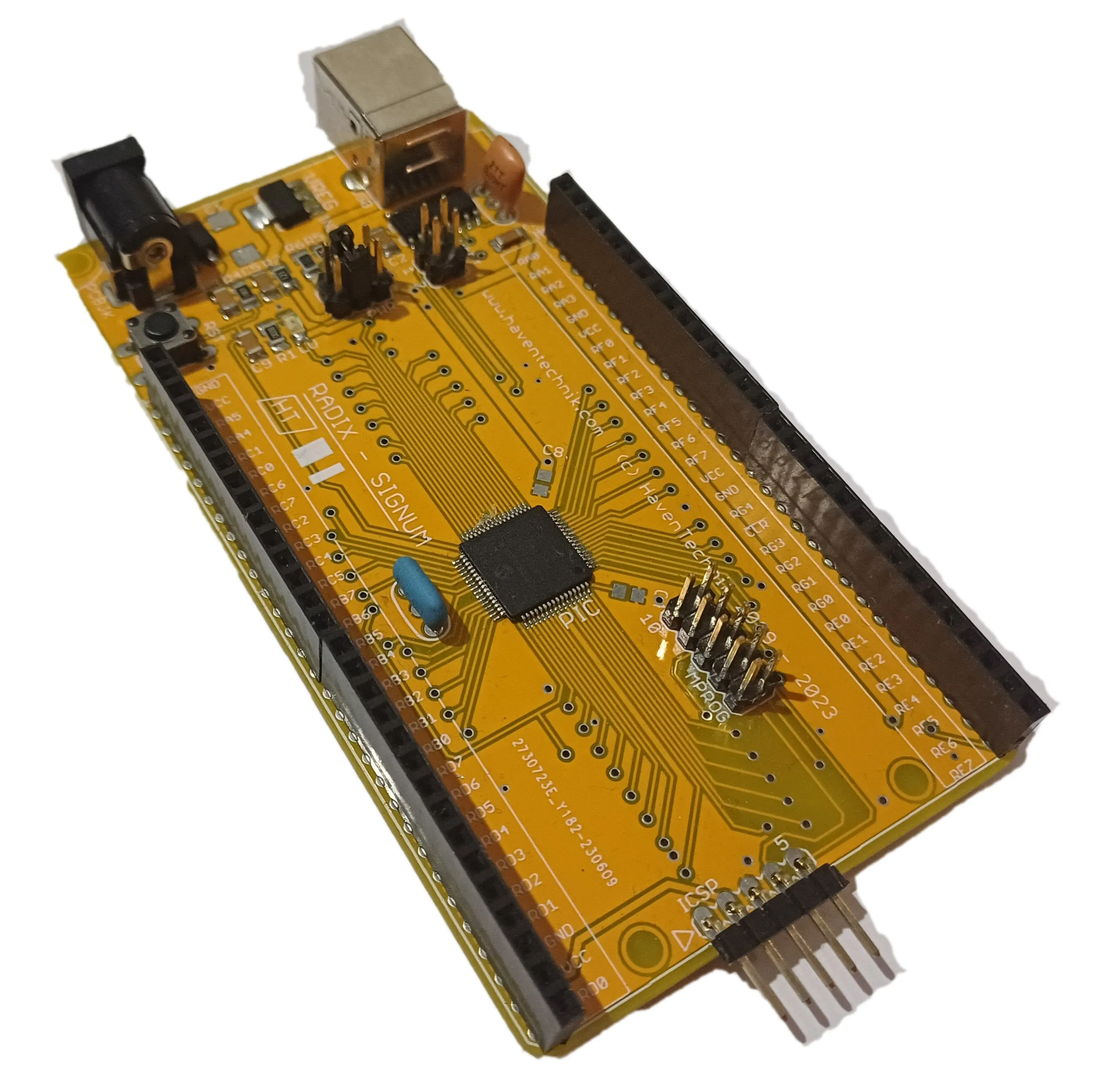

The SIGNUM caters to the 64-pin TQFP devices in the PIC16Fxxx and PIC18Fxxx families. The PCB is designed to accommodate learning and development requirements for a wide range of applications.

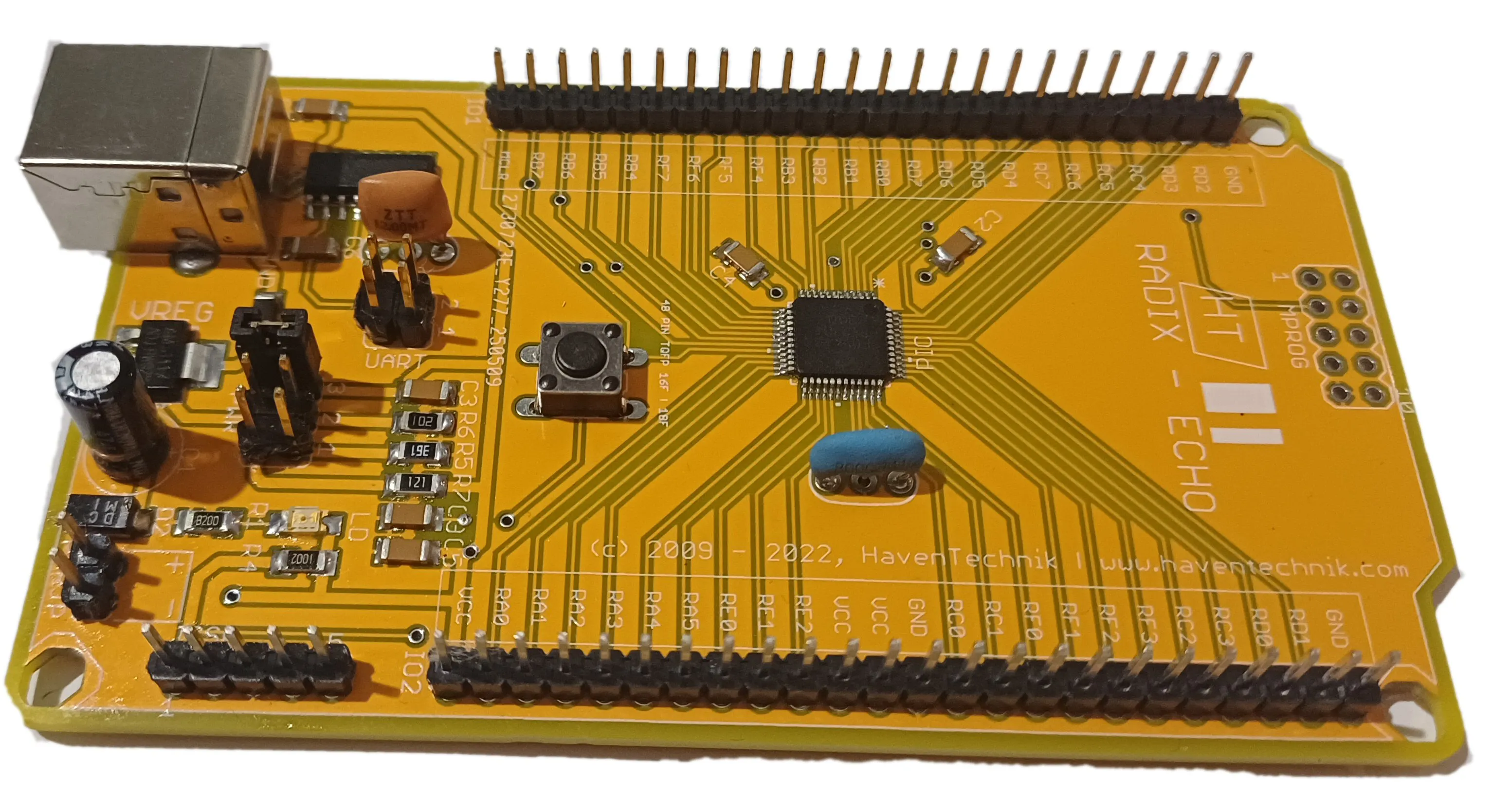

The SIGNUM is better suited to more advanced users, owing to the features inherent in the devices offered with the ECHO. If you are a beginner, then a member of the RADIX NANO Series or the RADIX - SEPIA may be a better start.



The 64-pin devices offer a wide variety of expansion options for your application. In line with a single device or low-density PCB population, the device, with additional I/O and integrated peripherals, enables more tasks to be handled by a single device.

The SIGNUM is a place to start for familiarising yourself with 64 PIN devices before moving onto the PLC Styled HMATIX.

For more information on the H-MATIX product range.
